The iRAYPLE AE series area scan camera offers a wide range of resolutions, as well as a comprehensive set of functional baselines and ISP algorithms. This combination effectively enhances image brightness and signal-to-noise ratio, resulting in improved image quality. With its high performance, reliability, and durability, it can be applied to various complex industrial scenarios and industries such as EV battery, 3C, semiconductor, and pharmaceutical.
A7500CU35E
Categories: AE Series
Description
Product Details
● USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface；
● 128MB on-board cache for data transmission or image resend;
● Support Software Trigger/Hardware Trigger/Software & Hardware Hybrid Trigger/Free Run Mode;
● Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.;
● Color cameras support interpolation, white balance, color conversion matrix, chroma, saturation, etc.；
● Support multiple image data formats output/ROI/Mirror, etc.；
● Compatible with USB3.0 Vision protocol and GenICam standard;
● Comform to CE, FCC, RoHS;

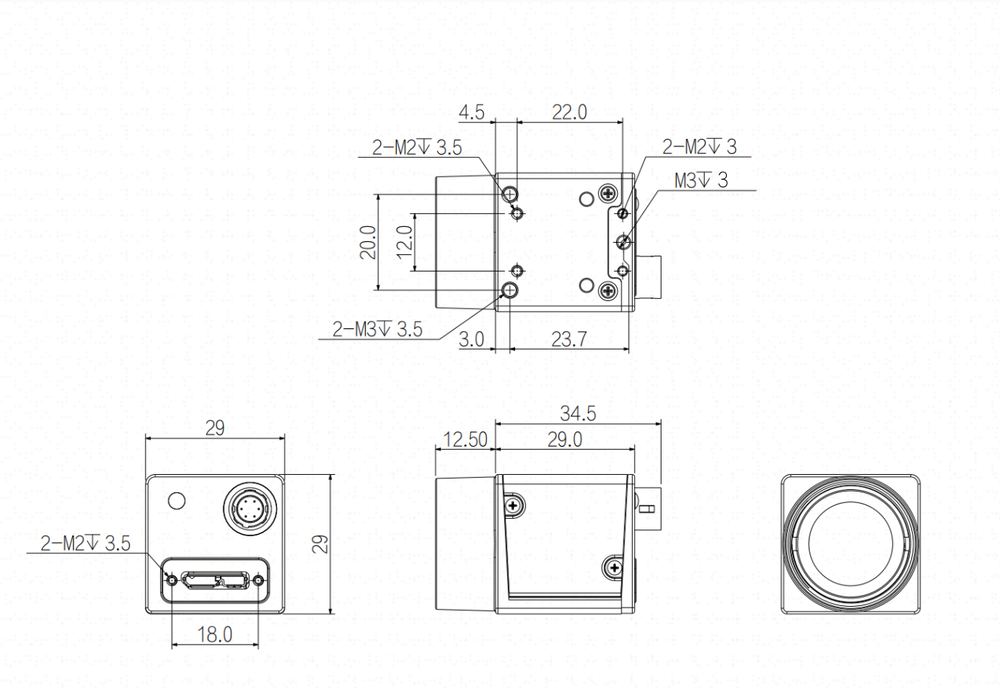

Dimensions
