Board-level series cameras are designed in ultra-thin size and compact structure that supports GigE and USB3.0 interfaces and are suitable for industrial, embedded, 3D, and other industries with high space requirements.
AB3600MU000E
Categories: Board-level Series
Description
Product Details
● USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface;
● Compact design of 35mm*35mm*19mm;
● 128MB on-board cache for data transmission or image resend;
● Support Software Trigger/Hardware Trigger/Free Run Mode;
● Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.;
● Support multiple image data formats output/ROI/Binning/Mirror, etc.;
● Conform to USB3.0 Vision protocol and GenICam standard;
● Conform to CE, FCC, RoHS;

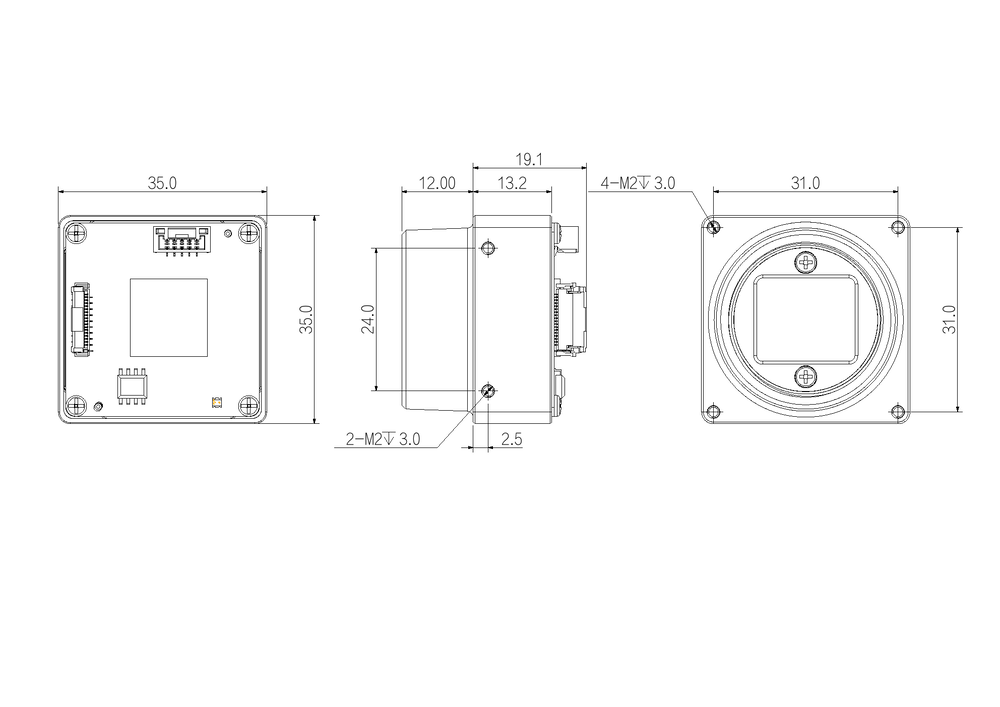

Dimensions
