The A Pro area scan products are designed with a compact and lightweight form, meanwhile offering high industrial performance.
AH5A09CU200E
Categories: A Pro Series
Description
Product Details
● USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface；
● Compact size of 29mmx44mmx58mm;
● 256MB on-board cache for data transmission or image resend;
● Support Software Trigger/Hardware Trigger/Free Run Mode;
● Support ISP functions including Gamma,LUT,BlackLevel ,Correction,TargetBrightness,Contrast,FFC,Denoising Sharpness,BalanceWhite,CCM,ColorAdjustment,Multi-color temperature adjustment, multi-function interpolation adjustment etc.;
● Support multiple image data formats output,ROI,Binning(Including Pixel arbitrary scaling),Mirror, AutoFunction,Sequencer（ Gain、Exposure） etc.;
● Compatible with USB3.0 Vision protocol and GenICam standard;
● Conform to CE/UKCA/UL/KC,RoHS;

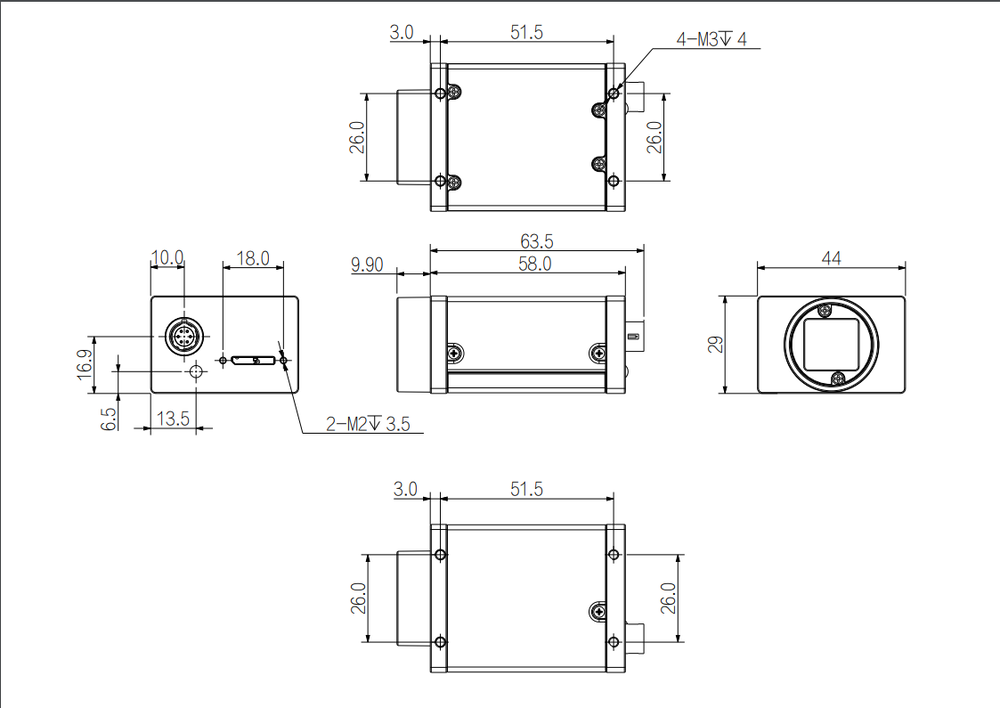

Dimensions
