The A Pro area scan products are designed with a compact and lightweight form, meanwhile offering high industrial performance.
AH7160CG000E
Categories: A Pro Series
Description
Product Details
● Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m;
● 256MB on-board cache for data transmission or image resend;
● Support Software Trigger/Hardware Trigger/Free Run Mode;
● Support ISP functions including Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast,FFC,Denoising Sharpness,BalanceWhite,CCM,ColorAdjustment,Multi-color temperature adjustment, multi-function interpolation adjustment etc.;
● Support multiple image data formats output/ROI/Binning(Including Pixel arbitrary scaling)/Mirror/ AutoFunction/Compress/Sequencer etc.;
● Conform to GigE Vision V2.0 protocol and GenICam standard;
● Conform to CE/UKCA/UL/KC,RoHS;

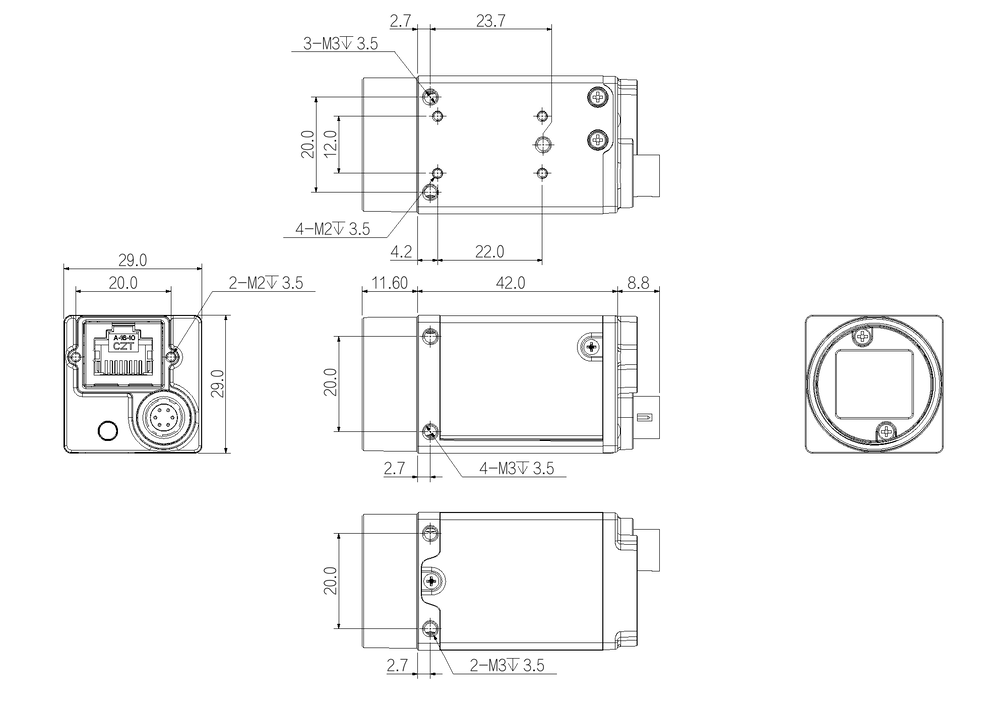

Dimensions
