The A Pro area scan products are designed with a compact and lightweight form, meanwhile offering high industrial performance.
AH7900MU000E
Categories: A Pro Series
Description
Product Details
● USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface；
● Compact size of 29mmx29mmx30mm;
● 256MB on-board cache for data transmission or image resend;
● Support Software Trigger/Hardware Trigger/Free Run Mode;
● Support ISP functions including Gamma,LUT,BlackLevel,Correction,TargetBrightness,Contrast,FFC,Denoising Sharpness etc.;
● Support multiple image data formats output,ROI,Binning(Including Pixel arbitrary scaling),Mirror, AutoFunction,Sequencer（ Gain、Exposure） etc.;
● Compatible with USB3.0 Vision protocol and GenICam standard;
● Conform to CE/UKCA/UL/KC,RoHS;

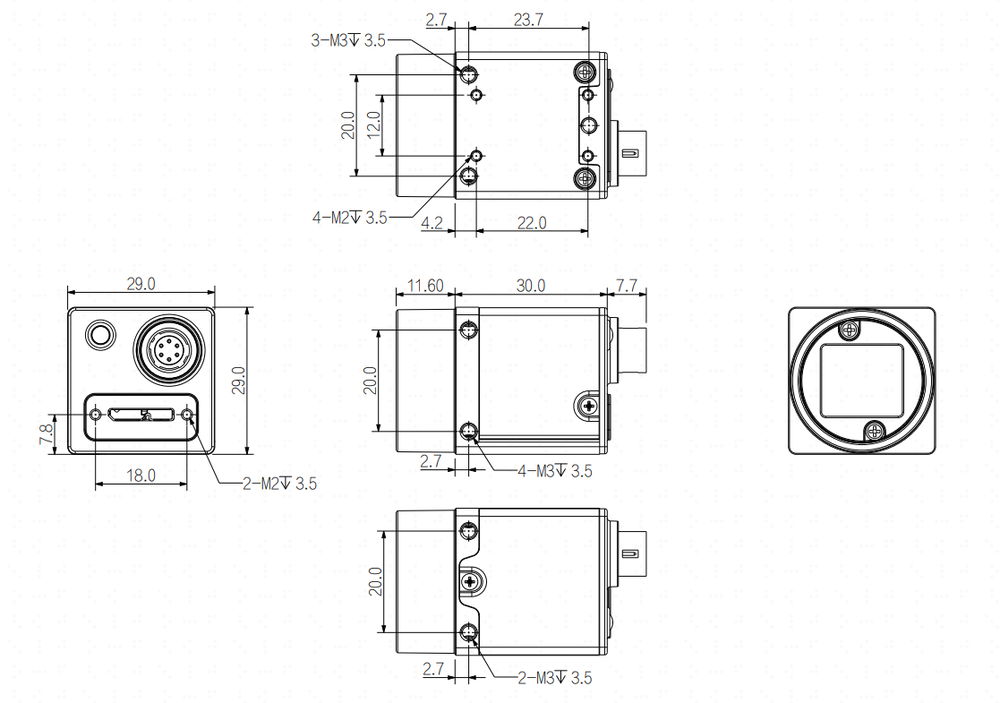

Dimensions
