AI-enabled R7000 series code readers achieve high decoding rates and support various 1D and 2D codes in complex scenarios. Ultra-high 20MP and 25MP resolutions can decode extremely small codes, as well as cover a large field of view (FOV) and depth of field (DOF) to decode multiple codes with sequential output. The C-mount design provides flexibility for customers to design the most suitable optical solution according to their applications.
R7201MG-00C-NGG01E
Categories: R7000 Series
Description
Product Details
● CMOS series product, high-speed capture
● Built-in deep learning algorithm, efficient and powerful algorithms
● Support software trigger/ hardware trigger/ free run modes
● GigE, up to 1Gbps bandwidth
● Abundant I/O interfaces, RS232,3Opto-isolated input, 3Opto-isolated outputs
● Industrial M12 connector, IP67

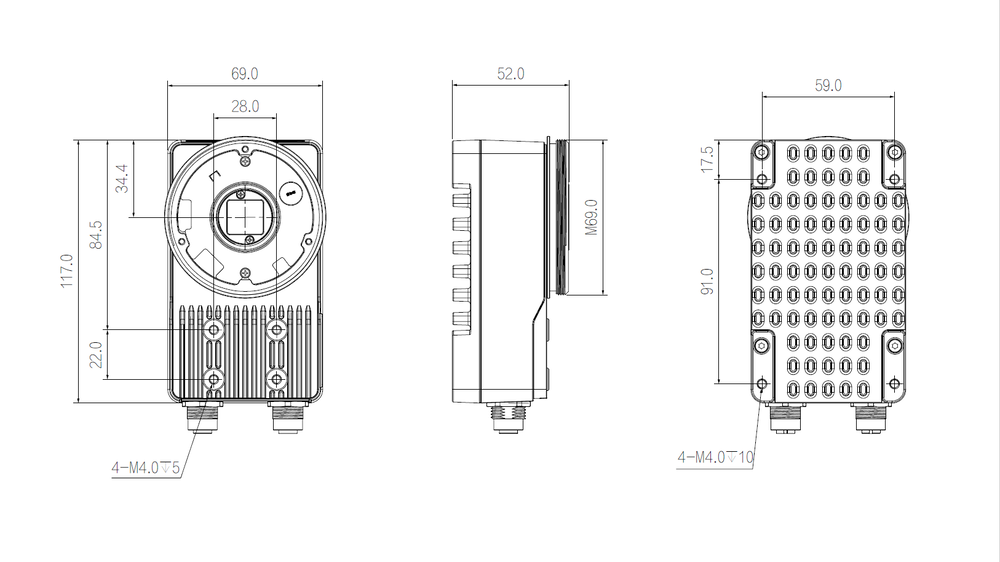

Dimensions
