Description
Compact power supplies…

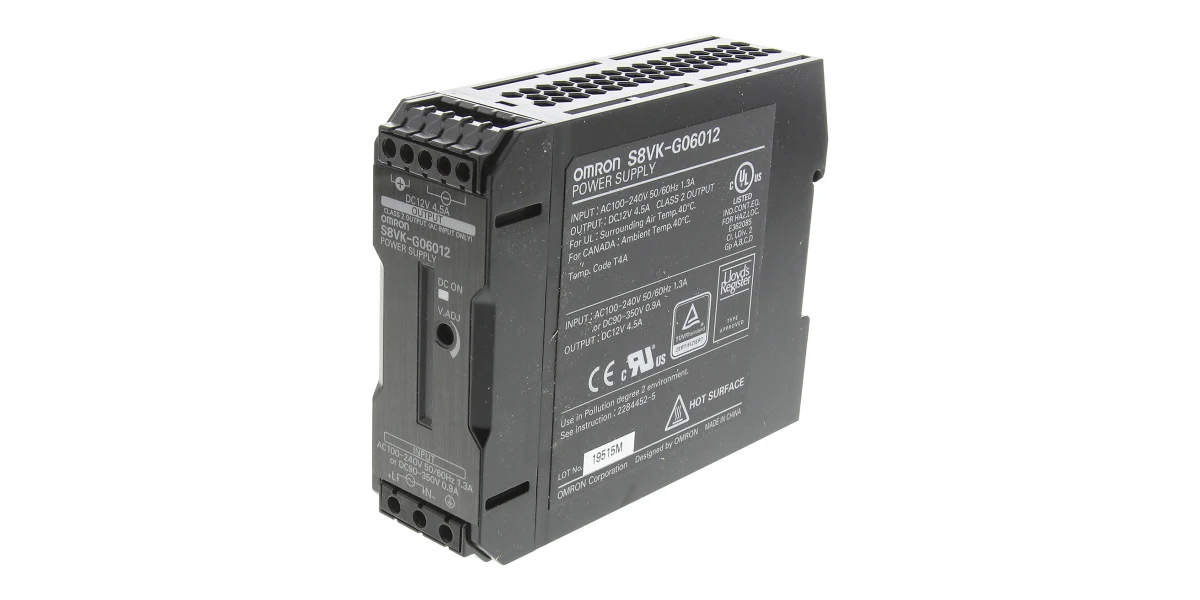

Omron has developed a new and exciting family of compact power supplies. With the same high quality and practical design that made our previous series safe, reliable, and easy to install, the new S8VK series is even tougher, more compact and easier to use.
Omron is a world leader in the development and manufacture of industrial power supplies.
We launched our first compact product, the S82K, in 1987 and our S8VS compact series has been an automatic choice with customers since 2002.
To ensure that we provide the perfect solution to match every customer’s need, Omron has launched 4 different families: the cost effective S8VK-C, the standard with single-phase input S8VK-G, the standard with three-phase input S8VK-T, and the redundancy unit S8VK-R.
…that make a world of difference!
Three compelling reasons why the S8VK is the right power supply for you:
Resistant in tough environments
Omron is confident that the quality of the S8VK will exceed your high expectations. Its robust design and construction withstand harsh environments and provide stable operation over a wide operating temperature range. Because of high MTBF figures, your S8VK will keep running in stable condition for a long term.
Easy and fast installation
The S8VK series not only offers you greater flexibility when designing your machine, it also saves you time and reduces costs thanks to the minimal wiring requirements and easy one-handed mounting provided by the enhanced DIN-rail mounting clip.
The most compact class on the market
Designed with space saving in mind, the S8VK series is our most compact power-supply range ever and the most compact class on today’s market.
Specifications
Ratings, Characteristics, and Functions
Power rating | 15 W | 30 W | ||||||
---|---|---|---|---|---|---|---|---|
Output voltage (VDC) | 5 V | 12 V | 24 V | 5 V | 12 V | 24 V | ||
Efficiency | 230 VAC input *6 |
77% typ. | 77% typ. | 80% typ. | 79% typ. | 82% typ. | 86% typ. | |
Input | Voltage range *1 | Single-phase, 85 to 264 VAC, 90 to 350 VDC *10 | ||||||
Frequency *1 | 50/60 Hz (47 to 450 Hz) | |||||||
Current | 115 VAC input *6 |
0.32 A typ. | 0.3 A typ. | 0.31 A typ. | 0.5 A typ. | 0.57 A typ. | 0.58 A typ. | |
230 VAC input *6 |
0.2 A typ. | 0.21 A typ. | 0.2 A typ. | 0.32 A typ. | 0.37 A typ. | 0.36 A typ. | ||
Power factor *6 |
230 VAC input, 100% load |
0.42 min. | 0.43 min. | 0.42 min. | 0.43 min. | |||
Leakage current |
115 VAC input | 0.14 mA typ. | 0.13 mA typ. | |||||
230 VAC input | 0.25 mA typ. | 0.24 mA typ. | ||||||
Inrush current *2 (for a cold start at 25°C) |
115 VAC input | 16 A typ. | 16 A typ. | |||||
230 VAC input | 32 A typ. | 32 A typ. | ||||||
Output | Rated output current | 3 A | 1.2 A | 0.65 A | 5 A | 2.5 A | 1.3 A | |
Boost current | 3.6 A | 1.44 A | 0.78 A | 6 A | 3 A | 1.56 A | ||
Voltage adjustment range *3 | -10% to 15% (with V.ADJ) (guaranteed) | |||||||
Ripple & Noise voltage *4 |
100 to 240 VAC input, 100% load *6 |
60 mVp-p max. at 20 MHz of bandwidth |
50 mVp-p max.at 20 MHz of bandwidth |
30 mVp-p max. at 20 MHz of bandwidth |
30 mVp-p max. at 20 MHz of bandwidth |
30 mVp-p max. at 20 MHz of bandwidth |
30 mVp-p max. at 20 MHz of bandwidth |
|
Input variation influence *8 | 0.4% max. | 0.4% max. | ||||||
Load variation influence *7 | 0.8% max. | 0.8% max. | ||||||
Temperature variation influence |
115 to 230 VAC input |
0.05%/°C max. | 0.05%/°C max. | |||||
Start up time *2 |
115 VAC input *6 |
530 ms typ. |
520 ms typ.. |
580 ms typ. |
550 ms typ. |
550 ms typ. |
600 ms typ. |
|
230 VAC input *6 |
330 ms typ. |
400 ms typ. |
400 ms typ. |
430 ms typ. |
490 ms typ. |
480 ms typ. |
||
Hold time *2 |
115 VAC input *6 |
28 ms typ. | 29 ms typ. | 32 ms typ. | 33 ms typ. | 36 ms typ. | 23 ms typ. | |
230 VAC input *6 |
134 ms typ. |
138 ms typ. |
134 ms typ. |
177 ms typ. |
170 ms typ. |
154 ms typ. |
||
Additional functions |
Overload protection | Yes, automatic reset | Yes, automatic reset | |||||
Overvoltage protection *5 | Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again) |
|||||||
Series operation | Yes (For up to two Power Supplies, external diodes are required.) | |||||||
Parallel operation | Yes (Refer to Safety Precautions) (For up to two Power Supplies) | |||||||
Output indicator | Yes (LED: Green), lighting from 80% to 90% or more of rated voltage | |||||||
Insulation | Withstand voltage | 3.0 kVAC for 1 min. (between all input terminals and output terminals), current cutoff 20 mA |
||||||
2.0 kVAC for 1 min. (between all input terminals and PE terminals), current cutoff 20 mA |
||||||||
1.0 kVAC for 1 min. (between all output terminals and PE terminals), current cutoff 20 mA |
||||||||
Insulation resistance | 100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC |
|||||||
Environ- ment |
Ambient operating temperature *12 |
-40 to 70°C (Derating is required according to the temperature. Refer to Engineering Data) (with no condensation or icing) |
||||||
Storage temperature | -40 to 85°C (with no condensation or icing) | |||||||
Ambient operating humidity | 0% to 95% (Storage humidity: 0% to 95%) | |||||||
Vibration resistance | 10 to 55 Hz, 0.375 mm half amplitude for 2 h each in X, Y, and Z directions | |||||||
Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions | |||||||
Reliability | MTBF | 135,000 hrs min. | ||||||
Life expectancy *9 | 10 years min. | |||||||
Con- struction |
Weight | 150 g max. | 195 g max. | |||||
Cooling fan | No | |||||||
Degree of protection | IP20 by EN/IEC 60529 | |||||||
Standards | Harmonic current emissions | Conforms to EN 61000-3-2 | ||||||
EMI | Conducted Emissions |
Conforms to EN 61204-3 Class B, EN 55011 Class B | ||||||
Radiated Emissions |
Conforms to EN 61204-3 Class B, EN 55011 Class B | |||||||
EMS | Conforms to EN 61204-3 high severity levels | |||||||
Approved Standards | UL Listed: UL 508 (Listing, Class2 Output: Per UL 1310) UL UR: UL 62368-1 (Recognition) cUL: CSA C22.2 No.107.1 (Class2 Output: Per CSA C22.2 No.223) cUR:CSA C22.2 No.62368-1 EN: EN 62477-1, EN 62368-1 |
|||||||
Conformed Standards | PELV (EN 60204-1, EN 62477-1) | |||||||
EN 61558-2-16 | ||||||||
EAC (TR CU 004 / 2011, TR CU 020 / 2011) | ||||||||
RCM (EN61000-6-4) | ||||||||
Marine Standards | Lloyd’s register *10 *11 | |||||||
SEMI | Conforms to F47-0706 ( 200 to 240 VAC input) |
*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on Catalog for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment range. When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that the load is not damaged.
*4. A characteristic when the ambient operating temperature is between –25 to 70°C.
*5. Refer to Overvoltage Protection on page 10 for the time when input voltage shuts off and input turns on again.
*6. The value is when both rated output voltage and rated output current are satisfied.
*7. 100 to 240 VAC input, in the range of 0 A to the rated output current.
*8. This is the maximum variation in the output voltage when the input voltage is gradually changed within the allowable input voltage range at the rated output voltage and rated output current.
*9. Refer to Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance on page 21 for details.
*10. Safety Standards for a DC Input
The following safety standards apply to a DC input: UL 62368-1, cUR (CSA C22.2 No. 62368-1), EN 62477-1, EN 62368-1, and Lloyd’s.
For a DC input, safety is ensured by an external fuse.
Select an external fuse that meets the following conditions.
S8VK-G015[][]: 350 VDC min, 3 A
S8VK-G030[][]: 350 VDC min, 4 A
*11. Clamp filter “ZCAT2035-0930” manufactured by TDK Corporation. or equivalent should be installed in the cable connected to the input – output terminals of S8VK-G series.
Noise filter “FN2080-10-06” manufactured by SCHAFFNER Corporation. or equivalent should be connected to the Input terminals of S8VK-G series.
*12. At −40 to −25°C, time will be required before the rated output voltage is output after the input voltage is input.
Also, the ripple noise value may exceed the value shown in the above table.
Power rating | 60 W | 120 W | |||
---|---|---|---|---|---|
Output voltage (VDC) | 12 V | 24 V | 24 V | ||
Efficiency | 230 VAC input *6 |
85% typ. | 88% typ. | 89% typ. | |
Input | Voltage range *1 | Single-phase, 85 to 264 VAC, 90 to 350 VDC *10 | |||
Frequency *1 | 50/60 Hz (47 to 450 Hz) | ||||
Current | 115 VAC input *6 |
1.0 A typ. | 1.1 A typ. | 1.3 A typ. | |
230 VAC input *6 |
0.6 A typ. | 0.7 A typ. | 0.7 A typ. | ||
Power factor *6 |
230 VAC input, 100% load |
0.46 min. | 0.45 min. | 0.94 min. | |
Leakage current |
115 VAC input | 0.16 mA typ. | 0.24 mA typ. | ||
230 VAC input | 0.30 mA typ. | 0.38 mA typ. | |||
Inrush current *2 (for a cold start at 25°C) |
115 VAC input | 16 A typ. | 16 A typ. | ||
230 VAC input | 32 A typ. | 32 A typ. | |||
Output | Rated output current | 4.5 A | 2.5 A | 5 A | |
Boost current | 5.4 A | 0.125 | 6 A | ||
Voltage adjustment range *3 | -10% to 15% (with V.ADJ) (guaranteed) | ||||
Ripple & Noise voltage *4 |
100 to 240 VAC input, 100% load *6 |
150 mVp-p max. at 20 MHz of bandwidth |
50 mVp-p max. at 20 MHz of bandwidth |
150 mVp-p max. at 20 MHz of bandwidth |
|
Input variation influence *8 | 0.4% max. | 0.4% max. | |||
Load variation influence *7 | 0.8% max. | 0.8% max. | |||
Temperature variation influence |
115 to 230 VAC input |
0.05%/°C max. | 0.05%/°C max. | ||
Start up time *2 |
115 VAC input *6 |
570 ms typ. | 650 ms typ. | 790 ms typ. | |
230 VAC input *6 |
430 ms typ. | 500 ms typ. | 750 ms typ. | ||
Hold time *2 |
115 VAC input *6 |
26 ms typ. | 25 ms typ. | 42 ms typ. | |
230 VAC input *6 |
139 ms typ. | 129 ms typ. | 42 ms typ. | ||
Additional functions |
Overload protection | Yes, automatic reset | Yes, automatic reset | ||
Overvoltage protection *5 | Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again) |
||||
Series operation | Yes (For up to two Power Supplies, external diodes are required.) | ||||
Parallel operation | Yes (Refer to Safety Precautions) (For up to two Power Supplies) | ||||
Output indicator | Yes (LED: Green), lighting from 80% to 90% or more of rated voltage | ||||
Insulation | Withstand voltage | 3.0 kVAC for 1 min. (between all input terminals and output terminals), current cutoff 20 mA |
|||
2.0 kVAC for 1 min. (between all input terminals and PE terminals), current cutoff 20 mA |
|||||
1.0 kVAC for 1 min. (between all output terminals and PE terminals), current cutoff 20 mA |
|||||
Insulation resistance | 100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC |
||||
Environ- ment |
Ambient operating temperature *12 |
-40 to 70°C (Derating is required according to the temperature. Refer to Engineering Data) (with no condensation or icing) |
|||
Storage temperature | -40 to 85°C (with no condensation or icing) | ||||
Ambient operating humidity | 0% to 95% (Storage humidity: 0% to 95%) | ||||
Vibration resistance | 10 to 55 Hz, 0.375 mm half amplitude for 2 h each in X, Y, and Z directions |
||||
Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions | ||||
Reliability | MTBF | 135,000 hrs min. | |||
Life expectancy *9 | 10 years min. | ||||
Con- struction |
Weight | 260 g max. | 620 g max. | ||
Cooling fan | No | ||||
Degree of protection | IP20 by EN/IEC 60529 | ||||
Standards | Harmonic current emissions | Conforms to EN 61000-3-2 | |||
EMI | Conducted Emissions |
Conforms to EN 61204-3 Class B, EN 55011 Class B | |||
Radiated Emissions |
Conforms to EN 61204-3 Class B, EN 55011 Class B | ||||
EMS | Conforms to EN 61204-3 high severity levels | ||||
Approved Standards | UL Listed: UL 508 (Listing, For 60 W only Class2 Output: Per UL 1310 ) UL UR: UL 62368-1 (Recognition) cUL: CSA C22.2 No.107.1 (For 60 W only Class2 Output: Per CSA C22.2 No.223) cUR: CSA C22.2 No.62368-1 EN: EN 62477-1, EN 62368-1 |
||||
Conformed Standards | PELV (EN 60204-1, EN 62477-1) | ||||
EN 61558-2-16 | |||||
EAC (TR CU 004 / 2011, TR CU 020 / 2011) | |||||
RCM (EN61000-6-4) | |||||
Marine Standards | Lloyd’s register *10 *11 | ||||
SEMI | Conforms to F47-0706 (200 to 240 VAC input) |
*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on Catalog for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment range. When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that the load is not damaged.
*4. A characteristic when the ambient operating temperature is between –25 to 70°C.
*5. Refer to Overvoltage Protection on page 10 for the time when input voltage shuts off and input turns on again.
*6. The value is when both rated output voltage and rated output current are satisfied.
*7. 100 to 240 VAC input, in the range of 0 A to the rated output current.
*8. This is the maximum variation in the output voltage when the input voltage is gradually changed within the allowable input voltage range at the rated output voltage and rated output current.
*9. Refer to Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance on page 21 for details.
*10. Safety Standards for a DC Input
The following safety standards apply to a DC input: UL 62368-1, cUR (CSA C22.2 No. 62368-1), EN 62477-1, EN 62368-1, and Lloyd’s.
For a DC input, safety is ensured by an external fuse.
Select an external fuse that meets the following conditions.
S8VK-G015[][]: 350 VDC min, 3 A
S8VK-G030[][]: 350 VDC min, 4 A
*11. Clamp filter “ZCAT2035-0930” manufactured by TDK Corporation. or equivalent should be installed in the cable connected to the input – output terminals of S8VK-G series.
Noise filter “FN2080-10-06” manufactured by SCHAFFNER Corporation. or equivalent should be connected to the Input terminals of S8VK-G series.
*12. At −40 to −25°C, time will be required before the rated output voltage is output after the input voltage is input.
Also, the ripple noise value may exceed the value shown in the above table.
Power rating | 240 W | 480 W | ||||
---|---|---|---|---|---|---|
Output voltage (VDC) | 24 V | 48 V | 24 V | 48 V | ||
Efficiency | 230 VAC input *6 |
92% typ. | 93% typ. | |||
Input | Voltage range *1 | Single-phase, 85 to 264 VAC, 90 to 350 VDC *10 | ||||
Frequency *1 | 50/60 Hz (47 to 63 Hz) | |||||
Current | 115 VAC input *6 |
2.4 A typ. | 4.7 A typ. | |||
230 VAC input *6 |
1.3 A typ. | 2.3 A typ. | ||||
Power factor *6 |
230 VAC input, 100% load |
0.9 min. | 0.97 min. | |||
Leakage current |
115 VAC input | 0.23 mA typ. | 0.3 mA typ. | |||
230 VAC input | 0.33 mA typ. | 0.49 mA typ. | ||||
Inrush current *2 (for a cold start at 25°C) |
115 VAC input | 16 A typ. | 16 A typ. | |||
230 VAC input | 32 A typ. | 32 A typ. | ||||
Output | Rated output current | 10 A | 5 A | 20 A | 10 A | |
Boost current | 12 A | 6 A | 24 A | 12 A | ||
Voltage adjustment range *3 | -10% to 15% (with V.ADJ) (guaranteed) | |||||
Ripple & Noise voltage *4 |
100 to 240 VAC input, 100% load *6 |
180 mVp-p max. at 20 MHz of bandwidth |
350 mVp-p max. at 20 MHz of bandwidth |
230 mVp-p max. at 20 MHz of bandwidth |
470 mVp-p max. at 20 MHz of bandwidth |
|
Input variation influence *8 | 0.4% max. | 0.4% max. | ||||
Load variation influence *7 | 0.8% max. | 0.8% max. | ||||
Temperature variation influence |
115 to 230 VAC input |
0.05%/°C max. | 0.05%/°C max. | |||
Start up time *2 |
115 VAC input *6 |
250 ms typ. | 290 ms typ. | 380 ms typ. | ||
230 VAC input *6 |
250 ms typ. | 290 ms typ. | 260 ms typ. | |||
Hold time *2 |
115 VAC input *6 |
44 ms typ. | 43 ms typ. | 40 ms typ. | ||
230 VAC input *6 |
44 ms typ. | 50 ms typ. | ||||
Additional functions |
Overload protection | Yes, automatic reset | Yes, automatic reset | |||
Overvoltage protection *5 | Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again) |
|||||
Series operation | Yes (For up to two Power Supplies, external diodes are required.) | |||||
Parallel operation | Yes (Refer to Safety Precautions) (For up to two Power Supplies) | |||||
Output indicator | Yes (LED: Green), lighting from 80% to 90% or more of rated voltage | |||||
Insulation | Withstand voltage | 3.0 kVAC for 1 min. (between all input terminals and output terminals), current cutoff 20 mA |
||||
2.0 kVAC for 1 min. (between all input terminals and PE terminals), current cutoff 20 mA |
||||||
1.0 kVAC for 1 min. (between all output terminals and PE terminals), current cutoff 20 mA |
||||||
Insulation resistance | 100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC |
|||||
Environ- ment |
Ambient operating temperature *12 |
-40 to 70 °C (Derating is required according to the temperature. Refer to Engineering Data) (with no condensation or icing) |
||||
Storage temperature | -40 to 85°C (with no condensation or icing) | |||||
Ambient operating humidity | 0% to 95% (Storage humidity: 0% to 95%) | |||||
Vibration resistance | 10 to 55 Hz, 0.375 mm half amplitude for 2 h each in X, Y, and Z directions |
|||||
Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions | |||||
Reliability | MTBF | 135,000 hrs min. | ||||
Life expectancy *9 | 10 years min. | |||||
Con- struction |
Weight | 900 g max. | 1,500 g max. | |||
Cooling fan | No | |||||
Degree of protection | IP20 by EN/IEC 60529 | |||||
Standards | Harmonic current emissions | Conforms to EN 61000-3-2 | ||||
EMI | Conducted Emissions |
Conforms to EN 61204-3 Class B, EN 55011 Class B | ||||
Radiated Emissions |
Conforms to EN 61204-3 Class B, EN 55011 Class B | |||||
EMS | Conforms to EN 61204-3 high severity levels | |||||
Approved Standards | UL Listed: UL 508 (Listing) UL UR: UL 62368-1 (Recognition) cUL: CSA C22.2 No.107.1 cUR: CSA C22.2 No.62368-1 EN: EN 62477-1, EN 62368-1 |
|||||
Conformed Standards | PELV (EN 60204-1, EN 62477-1) | |||||
EN 61558-2-16 | ||||||
EAC (TR CU 004 / 2011, TR CU 020 / 2011) | ||||||
RCM (EN61000-6-4) | ||||||
Marine Standards | Lloyd’s register *10 *11 | |||||
SEMI | Conforms to F47-0706 (200 to 240 VAC input) |
*2. For a cold start at 25°C. Refer to Engineering Data on Catalog for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment range. When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that the load is not damaged.
*4. A characteristic when the ambient operating temperature is between –25 to 70°C.
*5. Refer to Overvoltage Protection on page 10 for the time when input voltage shuts off and input turns on again.
*6. The value is when both rated output voltage and rated output current are satisfied.
*7. 100 to 240 VAC input, in the range of 0 A to the rated output current.
*8. This is the maximum variation in the output voltage when the input voltage is gradually changed within the allowable input voltage range at the rated output voltage and rated output current.
*9. Refer to Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance on page 21 for details.
*10. Safety Standards for a DC Input
The following safety standards apply to a DC input: UL 62368-1, cUR (CSA C22.2 No. 62368-1), EN 62477-1, EN 62368-1, and Lloyd’s.
For a DC input, safety is ensured by an external fuse.
Select an external fuse that meets the following conditions.
S8VK-G015[][]: 350 VDC min, 3 A
S8VK-G030[][]: 350 VDC min, 4 A
*11. Clamp filter “ZCAT2035-0930” manufactured by TDK Corporation. or equivalent should be installed in the cable connected to the input – output terminals of S8VK-G series.
Noise filter “FN2080-10-06” manufactured by SCHAFFNER Corporation. or equivalent should be connected to the Input terminals of S8VK-G series.
*12. At −40 to −25°C, time will be required before the rated output voltage is output after the input voltage is input.
Also, the ripple noise value may exceed the value shown in the above table.
For over 25 years, PT. Mitrainti Sejahtera Eletrindo (MISEL) has developed automation system solutions to assist our customers in achieving high efficiency and effectiveness in their manufacturing process. We become a trusted partner for local and global companies in diverse industries such as consumer products, tobacco industry, packaging companies, foods and beverages, pharmaceutical, industrial manufacturing, etc. With adequate experiences in automation industry, we are your first and best choice to support your automation needs.
Feel free to contact us for more information :
Sales & Marketing
Ruko Pengampon Square Blok D-31
Jl. Semut Baru, Kel. Bongkaran, Kec. Pabean Cantian Kota Surabaya – Jawa Timur
[email protected]
WhatsApp: +628170006907
T. (031) 355 1715
F. (031) 355 3995
Reviews
There are no reviews yet.
